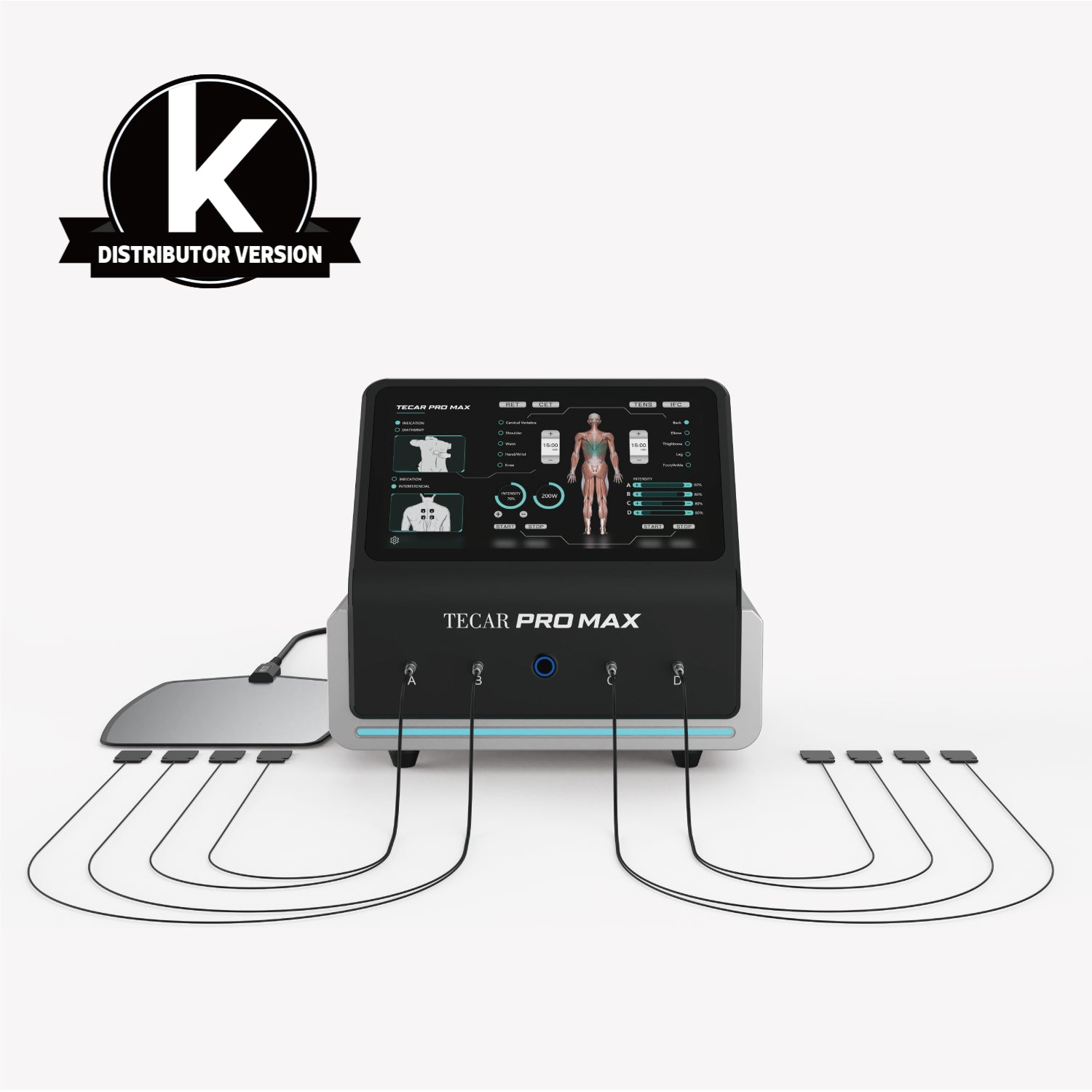

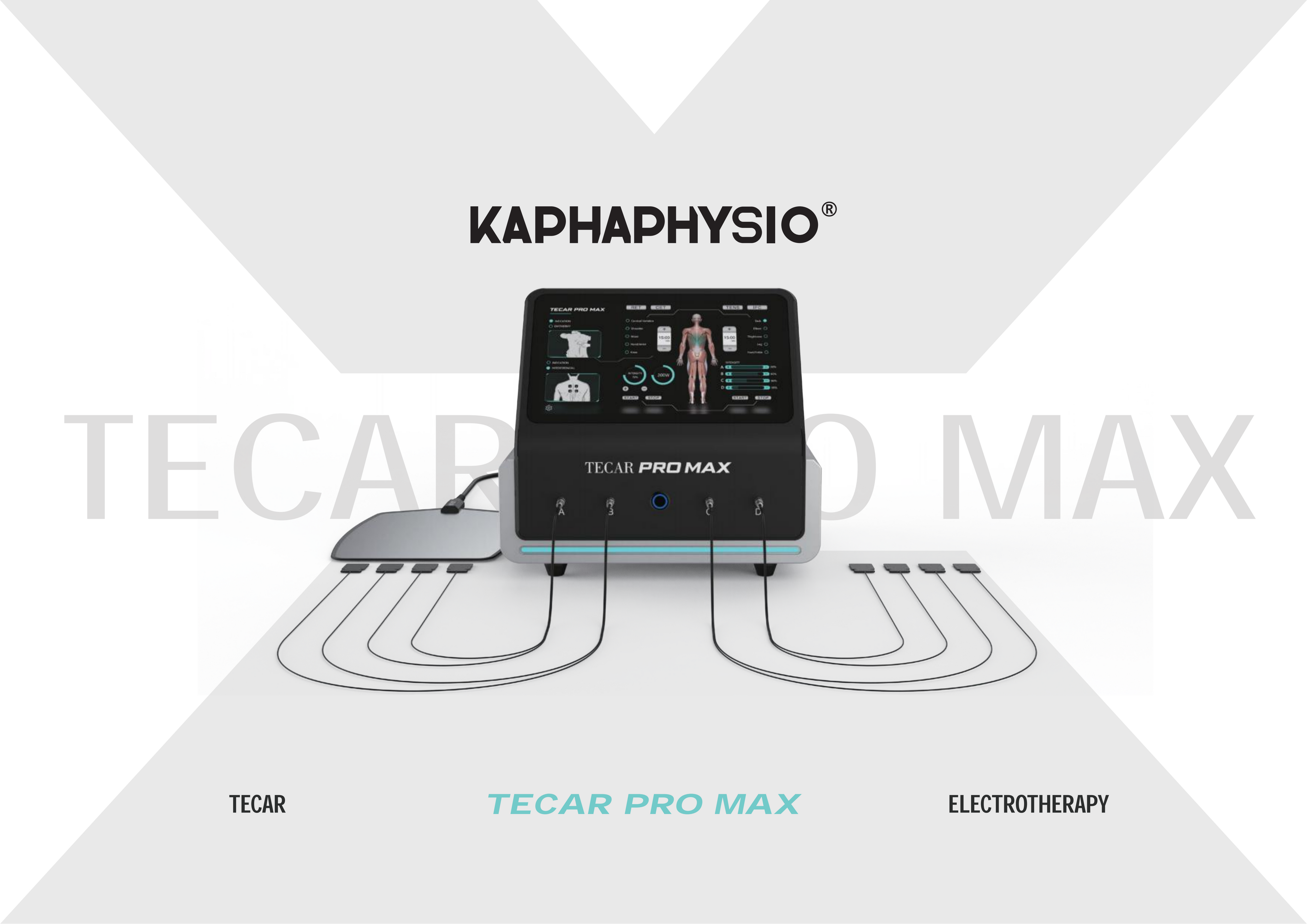

One system. Two therapies. Working together.

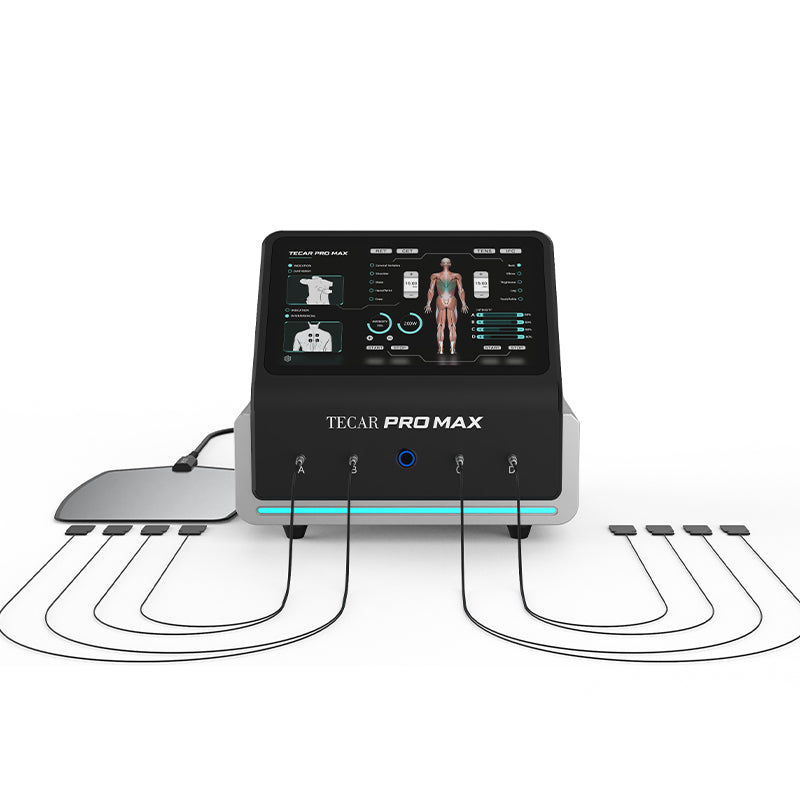

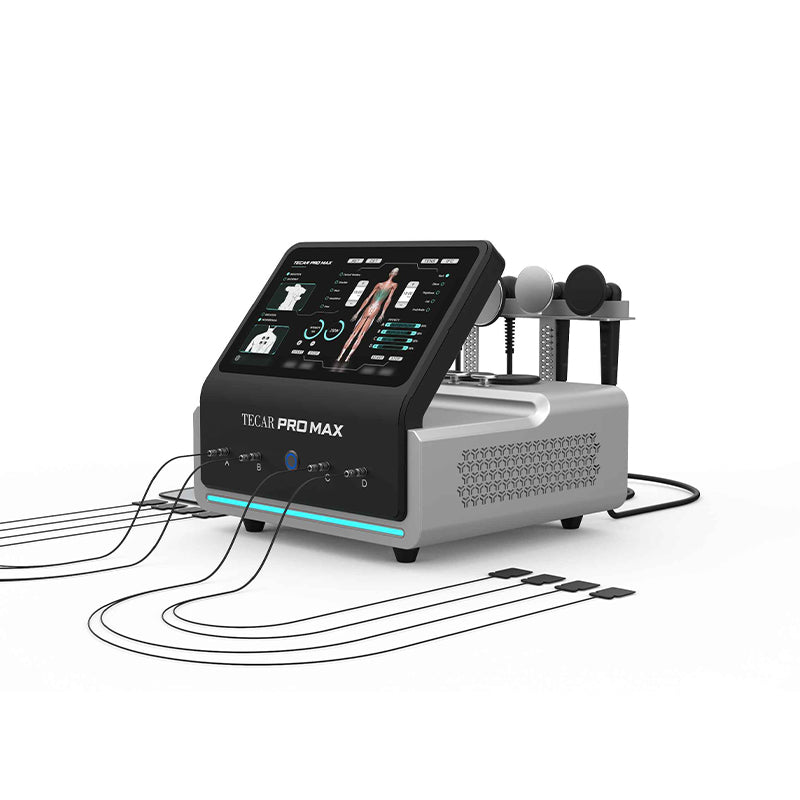

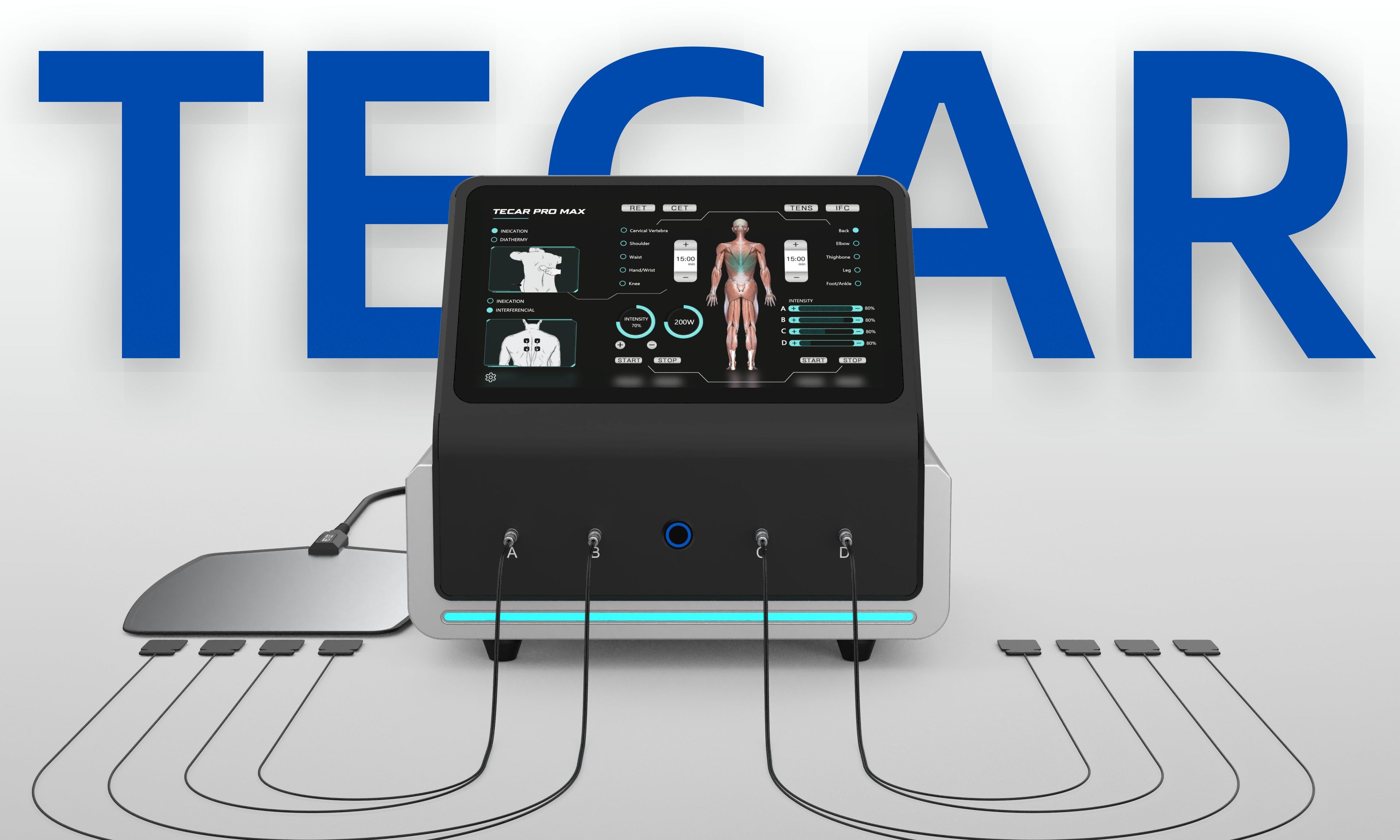

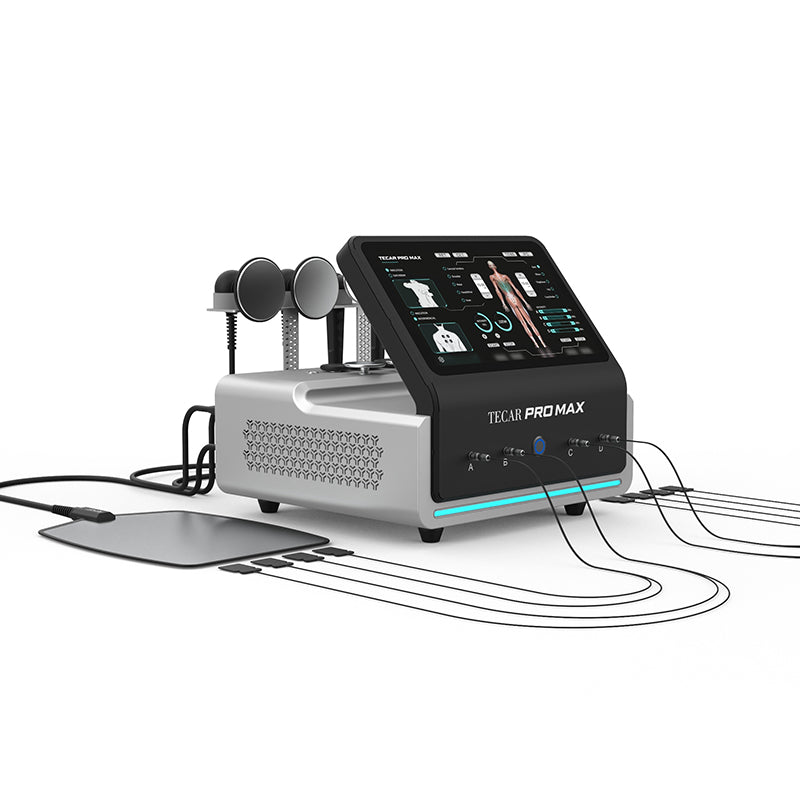

K-Tecar Pro Max integrates TECAR therapy
and electrotherapy into a single clinical platform, delivering efficient treatment from surface to depth.

Designed for deep tissue

Using capacitive and resistive energy transfer, TECAR therapy generates endogenous heat within tissue, supporting circulation, metabolism, and recovery in muscles, joints, tendons, and fascia.

Instant pain modulation

Integrated IFC and TENS deliver controlled
neuromodulation to support pain relief,
reduce inflammation, and improve circulation during rehabilitation.

A clearer way to treat

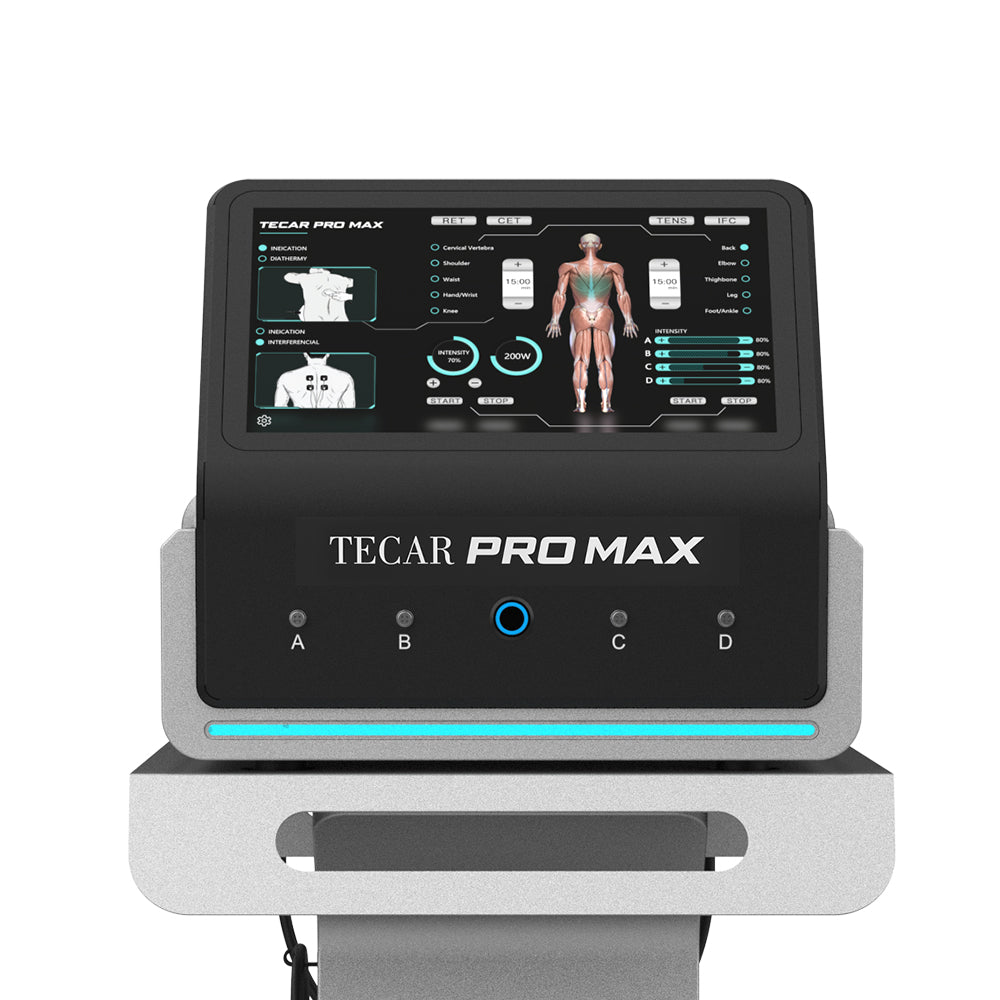

The 13.3-inch high-definition touchscreen
features an intuitive clinical interface,
allowing therapists to visualize treatment
and operate with confidence and precision.

Engineered for clinical reliability

  • New CET / RET handle

    Reinforced materials and precision engineering extend service life without compromising performance.

  • Upgraded control system

    Optimized PCB design and chip integration ensure stable and consistent electrical output for medical use.

  • Large-area treatment capability

    Designed to deliver uniform deep thermal penetration across broad muscle groups.

Built for every treatment area

  •

FAQs

What is TECAR PRO MAX and what therapies does it combine?

TECAR PRO MAX is a Tecar Combo Electrotherapy system that integrates TECAR therapy (CET & RET) with electrotherapy (IFC & TENS). This combination enables both deep and superficial intervention for musculoskeletal, neuromuscular, and rehabilitation treatments.
What is the difference between CET and RET modes?

Capacitive (CET) mode targets tissues with high water content, such as muscles, lymphatic system, venous system, and dermis.


Resistive (RET) mode is designed for high-resistance, low-water tissues including deep muscles, joints, tendons, ligaments, cartilage, and bones.

Together, CET and RET allow precise energy delivery from superficial to deep tissue layers.

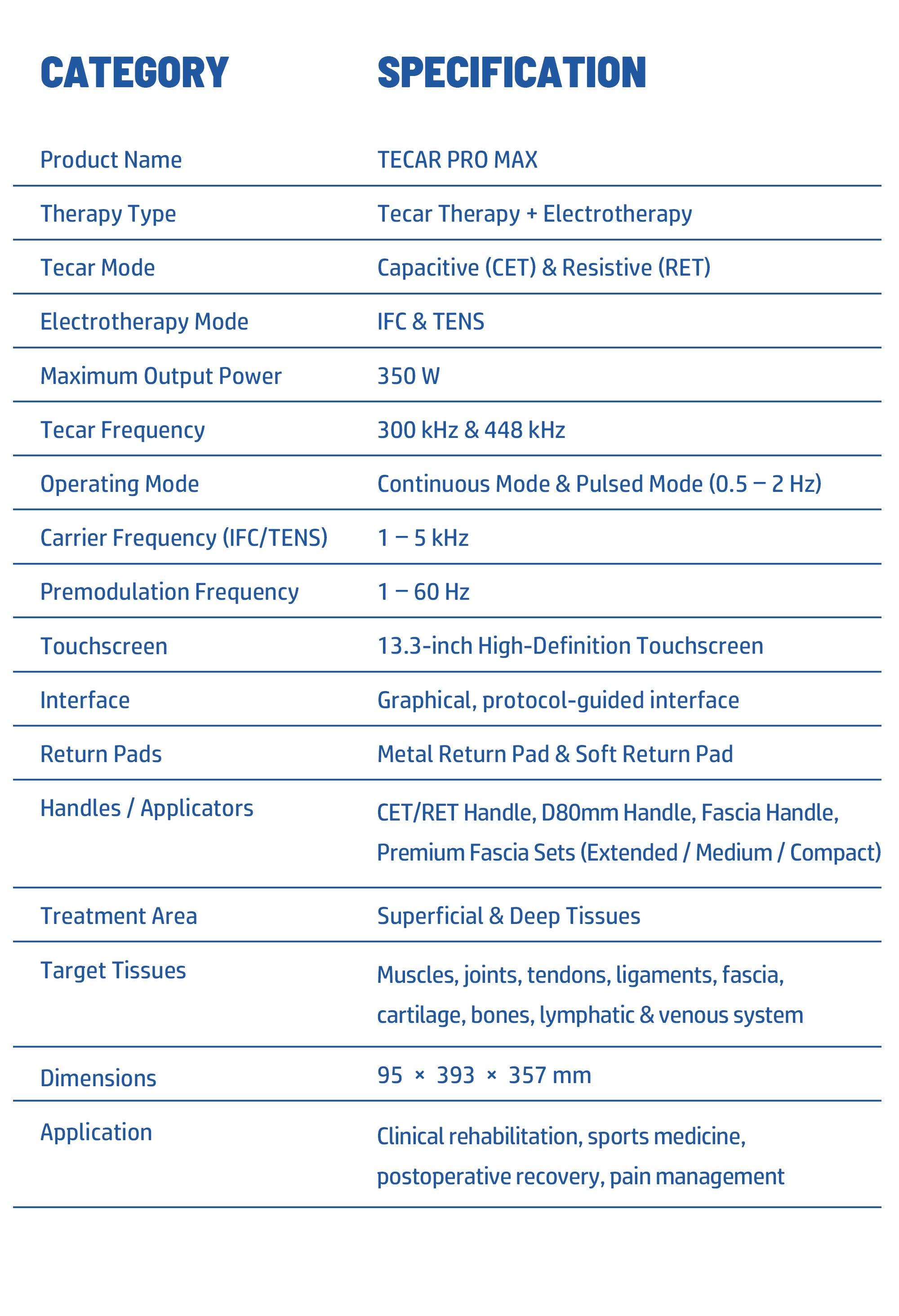

What are the technical specifications of TECAR PRO MAX?

TECAR PRO MAX operates with an output power up to 350W and supports dual frequencies of 300 kHz and 448 kHz. It features continuous mode and pulsed mode (0.5–2 Hz), offering flexible treatment intensity and thermal control for different clinical needs.
What electrotherapy functions are included?

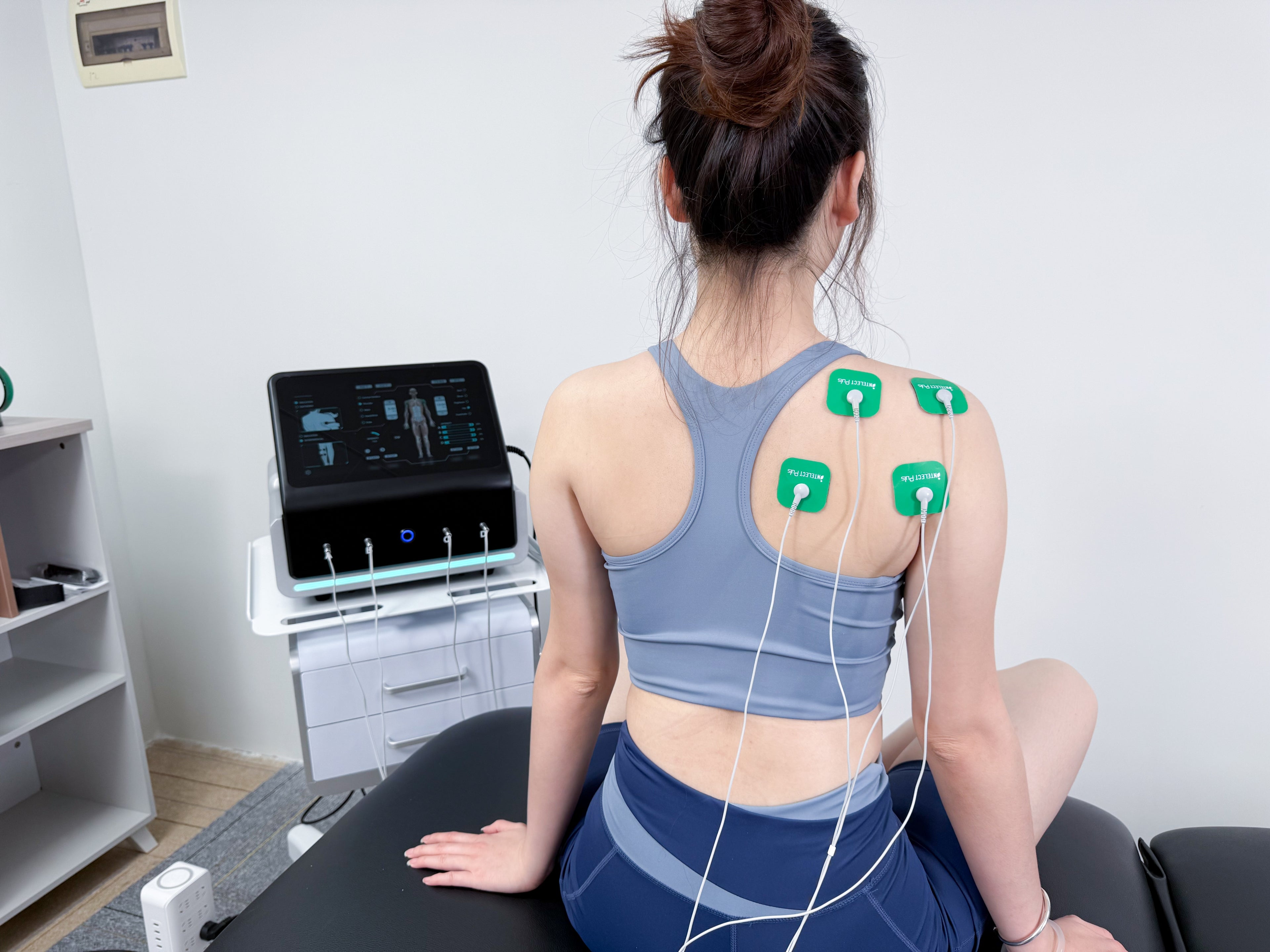

The device includes IFC (Interferential Current) and TENS (Transcutaneous Electrical Nerve Stimulation).


  • IFC supports deep recovery and improves microcirculation.

  • TENS provides immediate pain relief through neuromodulation.

    Carrier frequency ranges from 1–5 kHz, with premodulation frequency of 1–60 Hz.
How does TECAR PRO MAX improve treatment efficiency?

TECAR therapy pre-heats tissues endogenously, reducing tissue impedance. This allows electrotherapy (IFC/TENS) to work more efficiently with lower required intensity, helping shorten treatment cycles and improve overall therapeutic outcomes.
What types of accessories and applicators are available?

TECAR PRO MAX supports a wide range of upgraded accessories, including:

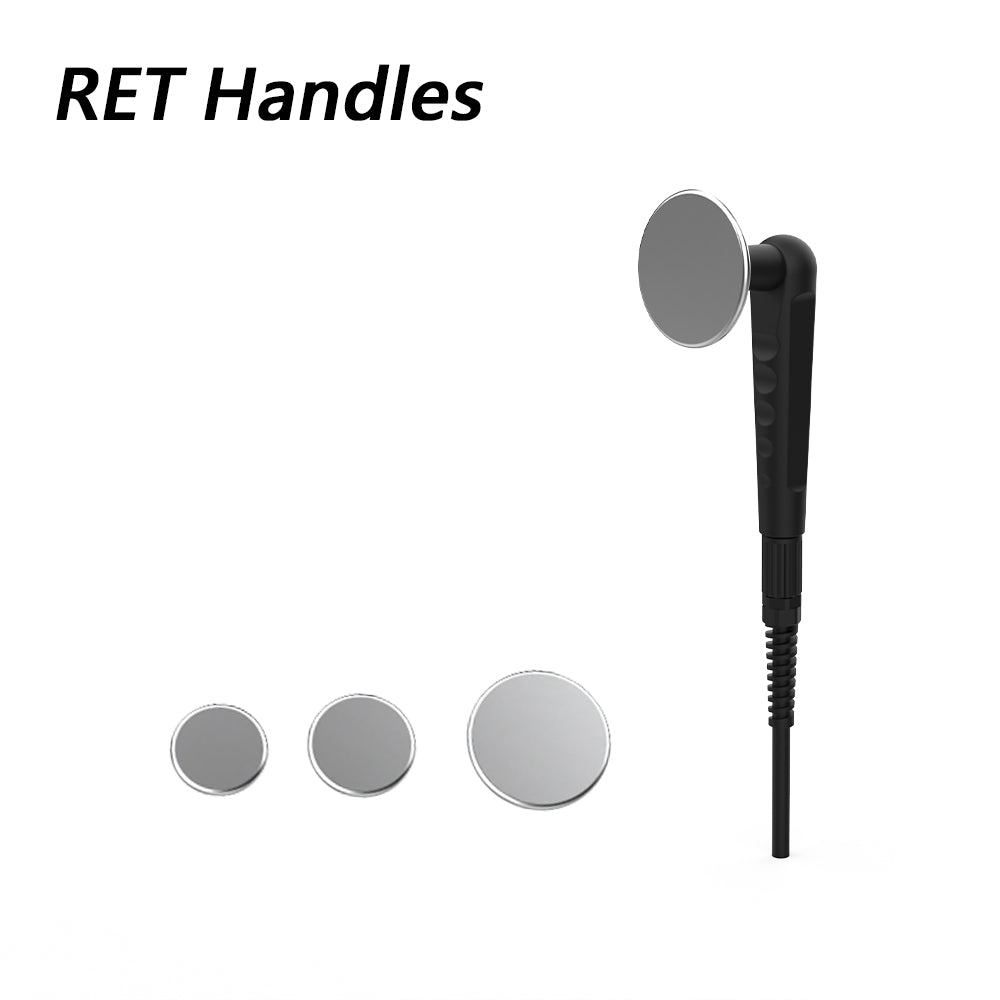

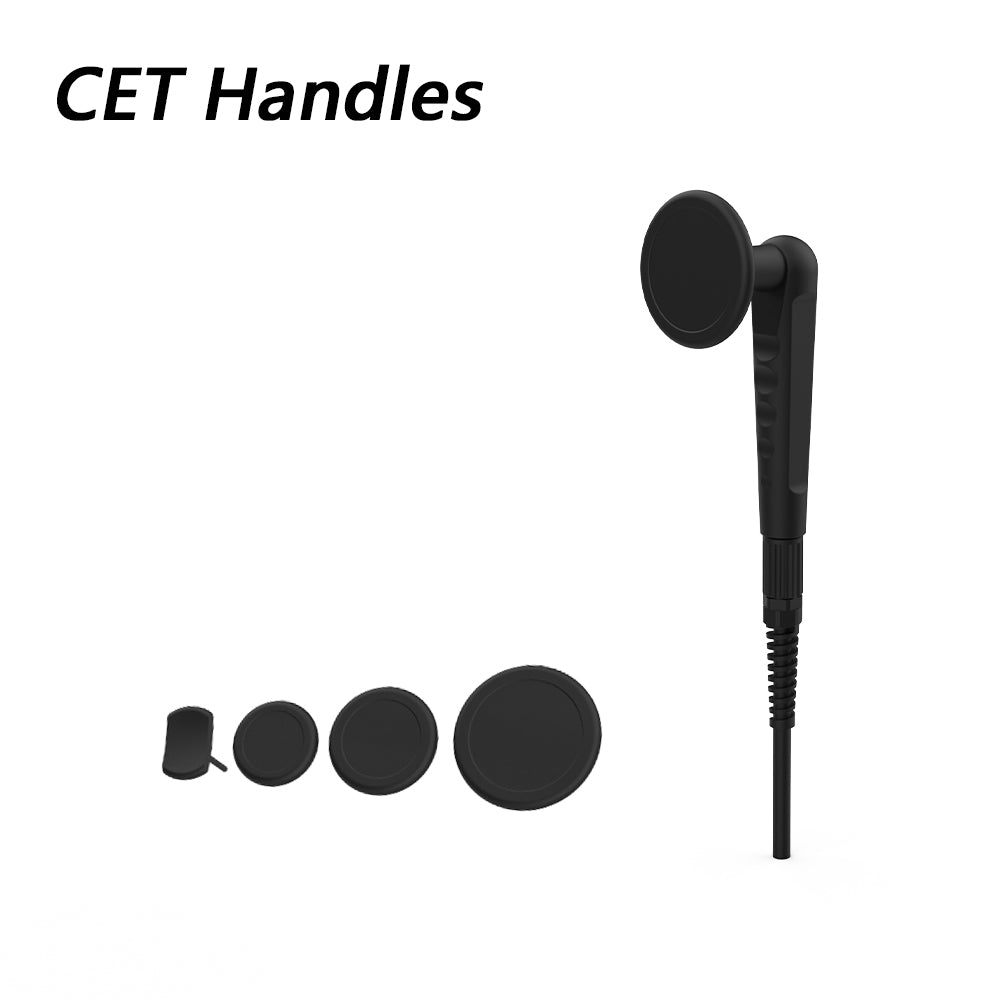

  • CET/RET handles with reinforced materials
  • Metal and soft return pads

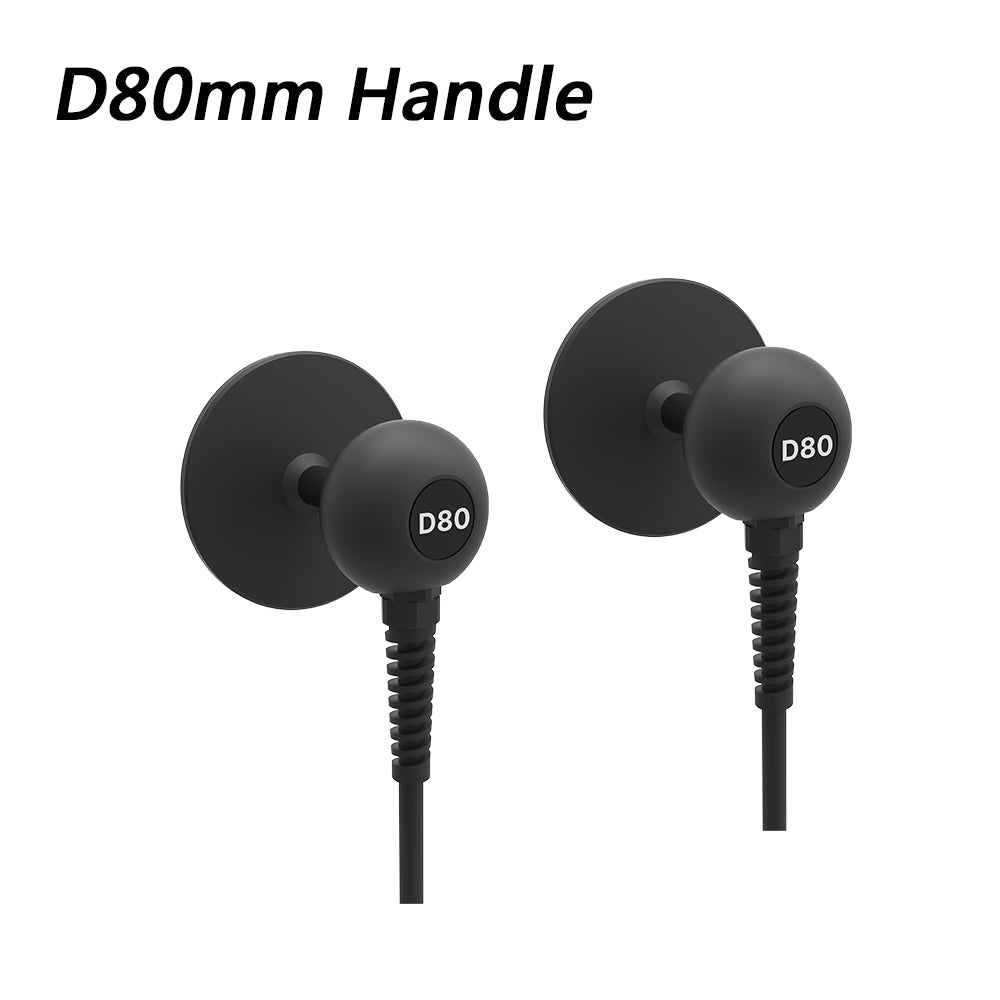

  • D80mm handle for large-area treatments

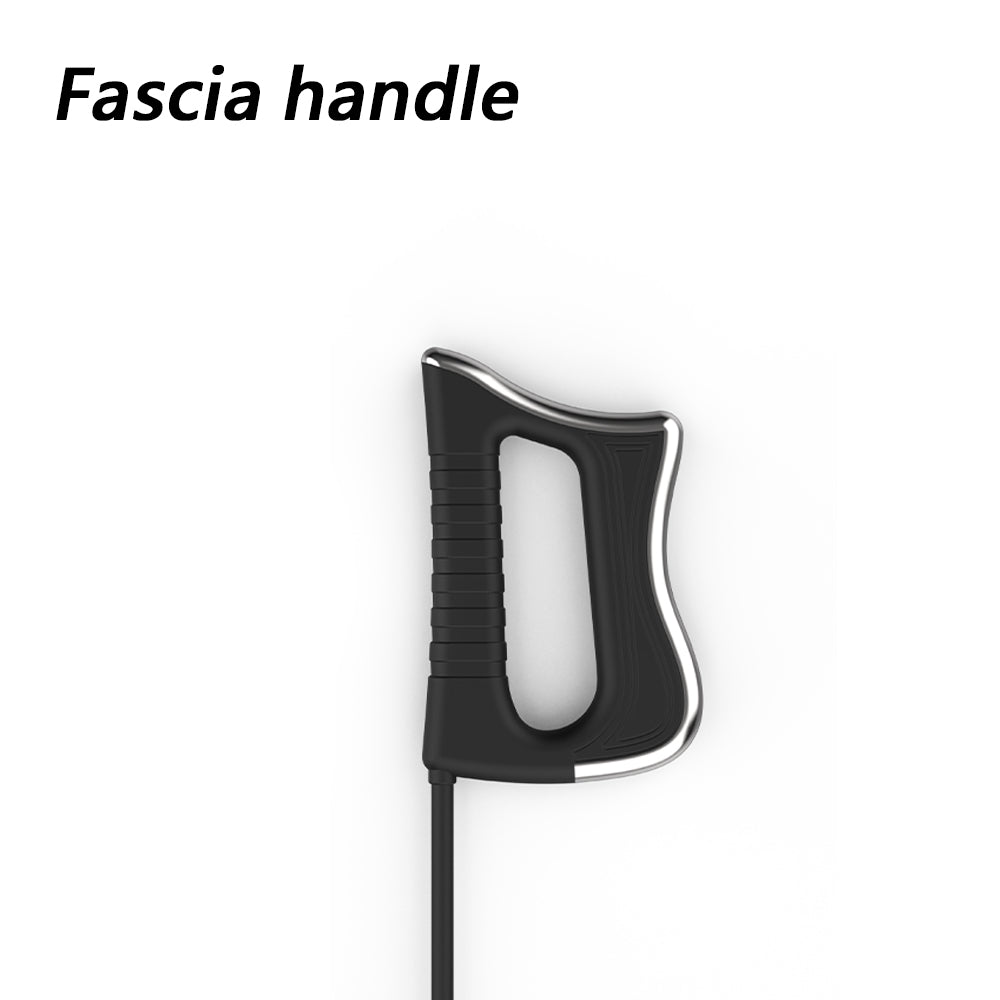

  • Upgraded fascia handle

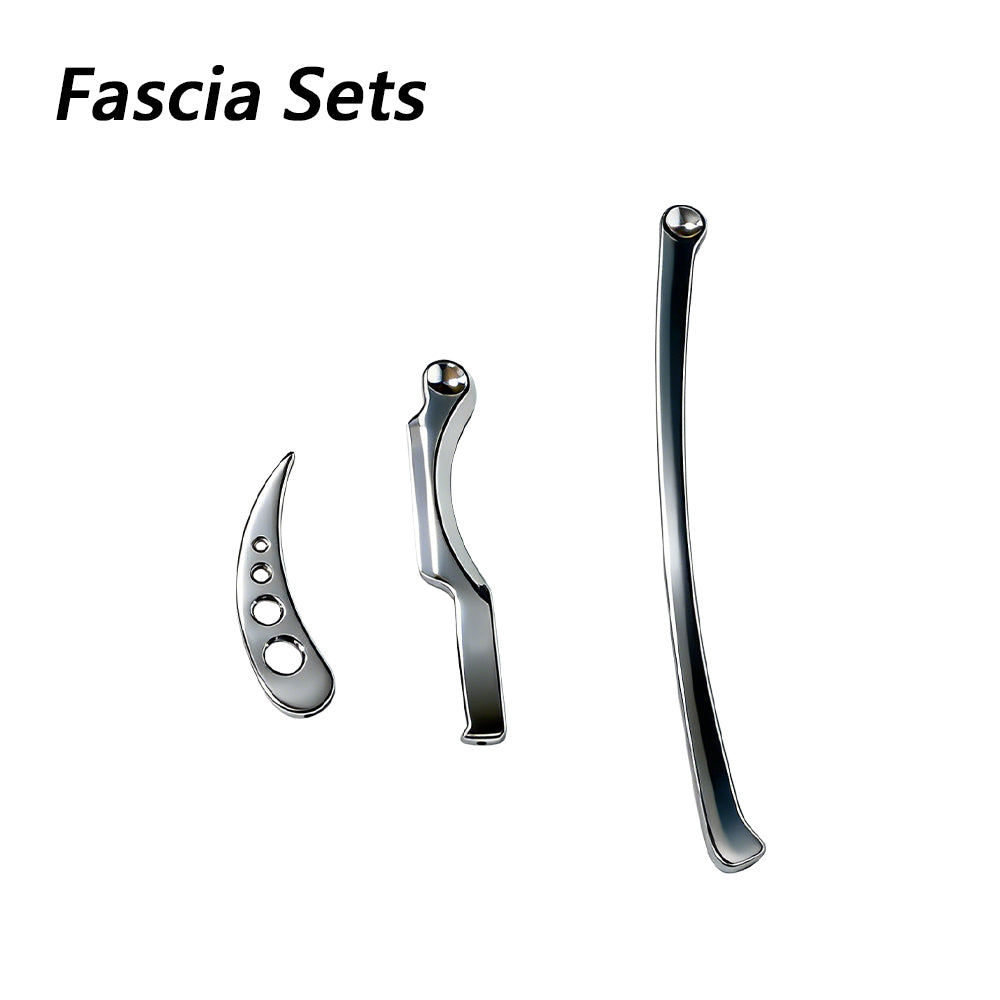

  • Premium fascia sets (extended, medium, compact heads)

    These accessories allow precise treatment of large areas, curved regions, deep tissues, and trigger points.
What conditions can TECAR PRO MAX be used for?

Common clinical applications include:

  • Sports injuries (tendinitis, muscle tears, ligament sprains)
  • Chronic joint disorders (frozen shoulder, osteoarthritis, lumbar disc issues)
  • Superficial inflammation (post-surgical scars, lymphedema)
  • Postoperative rehabilitation (ACL, Achilles tendon repair, knee replacement)
  • Neuromuscular disorders (post-stroke spasticity, carpal tunnel syndrome)
Can TECAR PRO MAX be used for aesthetic or wellness applications?


Yes. CET mode only can be used for facial lifting and tightening. RET mode is not recommended for facial treatments. The device is also used for cellulite reduction and abdominal area management under professional supervision.
Is TECAR PRO MAX easy to operate for clinicians?

Yes. The system features a 13.3-inch high-definition touchscreen with an intuitive graphical interface that visually demonstrates treatment applications. This allows clinicians to operate the device efficiently with guided protocols and simplified parameter adjustments.
Is TECAR PRO MAX safe for clinical use?

TECAR PRO MAX is designed with a reinforced PCB and optimized control system to ensure electrical stability for medical use. When operated according to clinical guidelines and contraindications, it provides a non-invasive, controlled, and professional therapy solution suitable for daily clinical practice.

What’s Included in the Box

CET / RET Treatment Handle
Upgraded handle with reinforced materials and precision engineering, designed for long-term clinical durability.

Metal Return Pad
For RET mode treatments, ideal for deep tissues such as joints, tendons, ligaments, and bones.

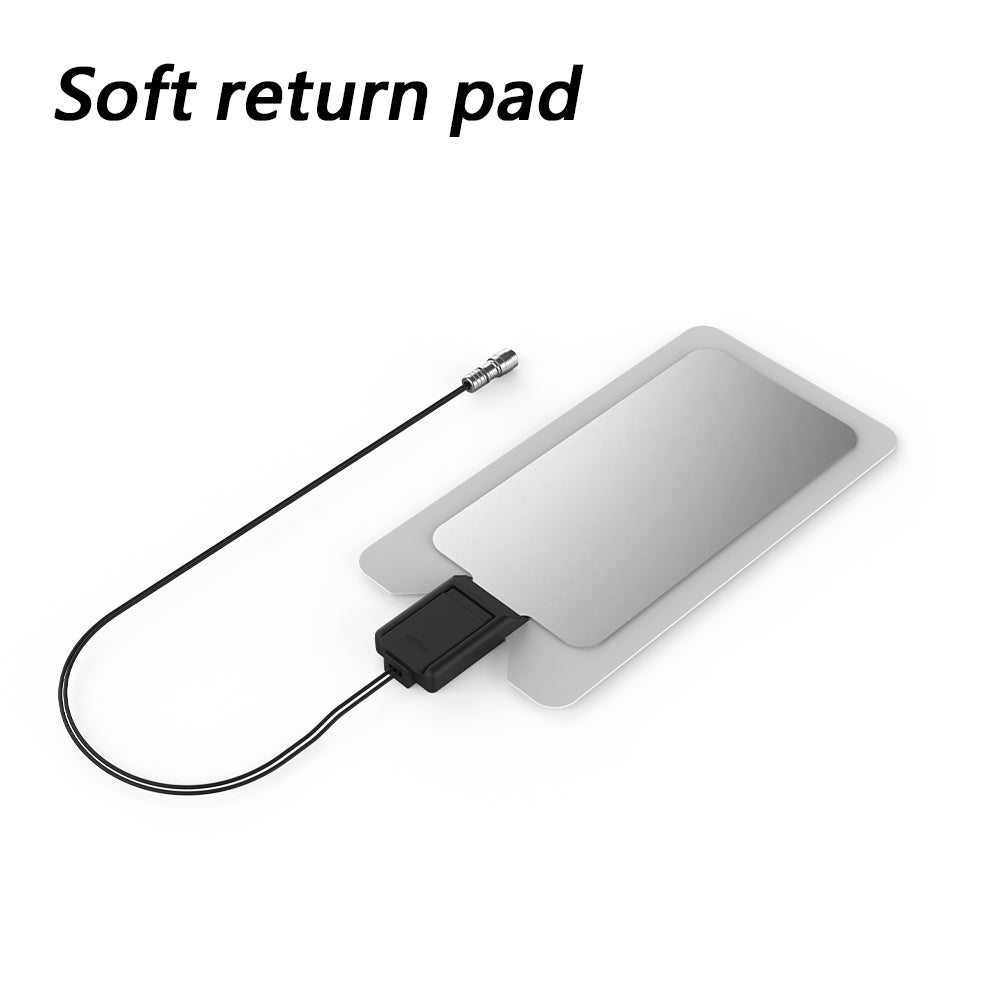

Soft Return Pad
Designed for improved comfort and flexible positioning during treatments.

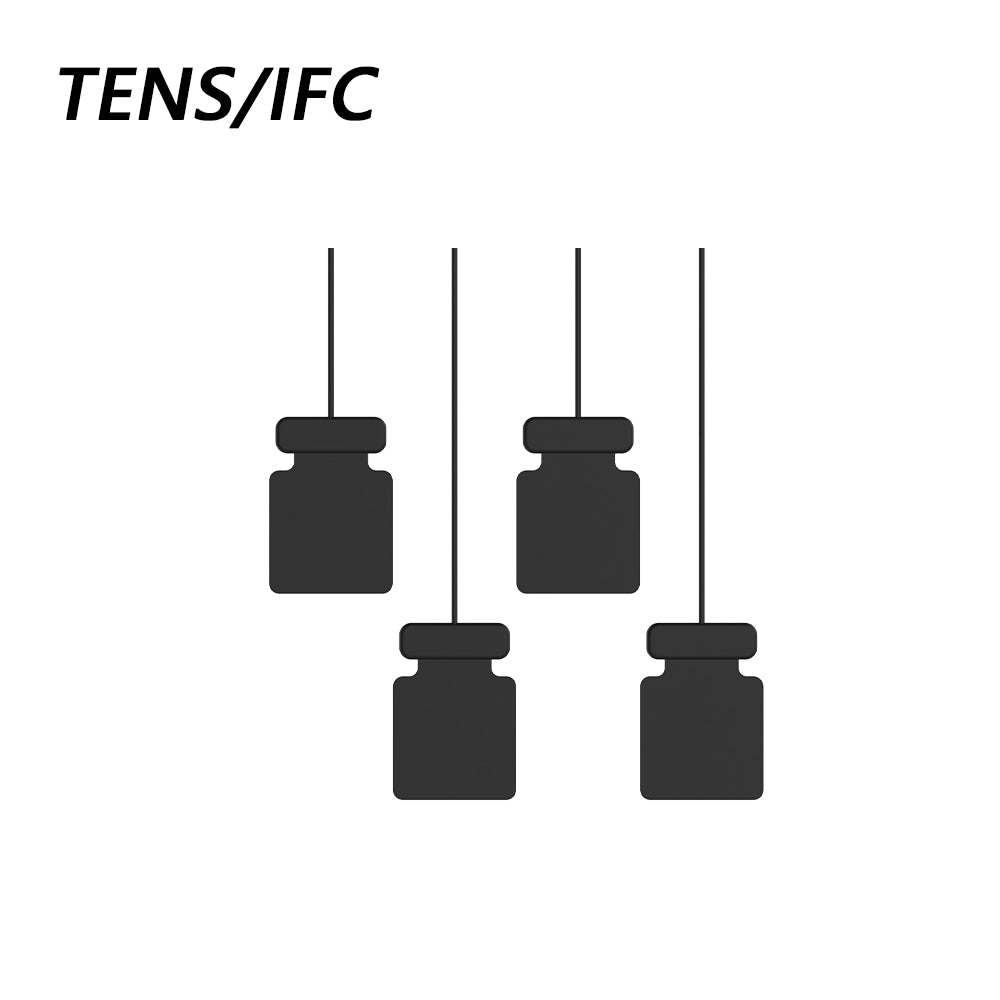

Electrotherapy Cables × 4
Four dedicated cables for IFC and TENS electrotherapy, allowing multi-channel neuromuscular stimulation and pain management applications.

Power Cable
Standard power connection for clinic and professional environments.
