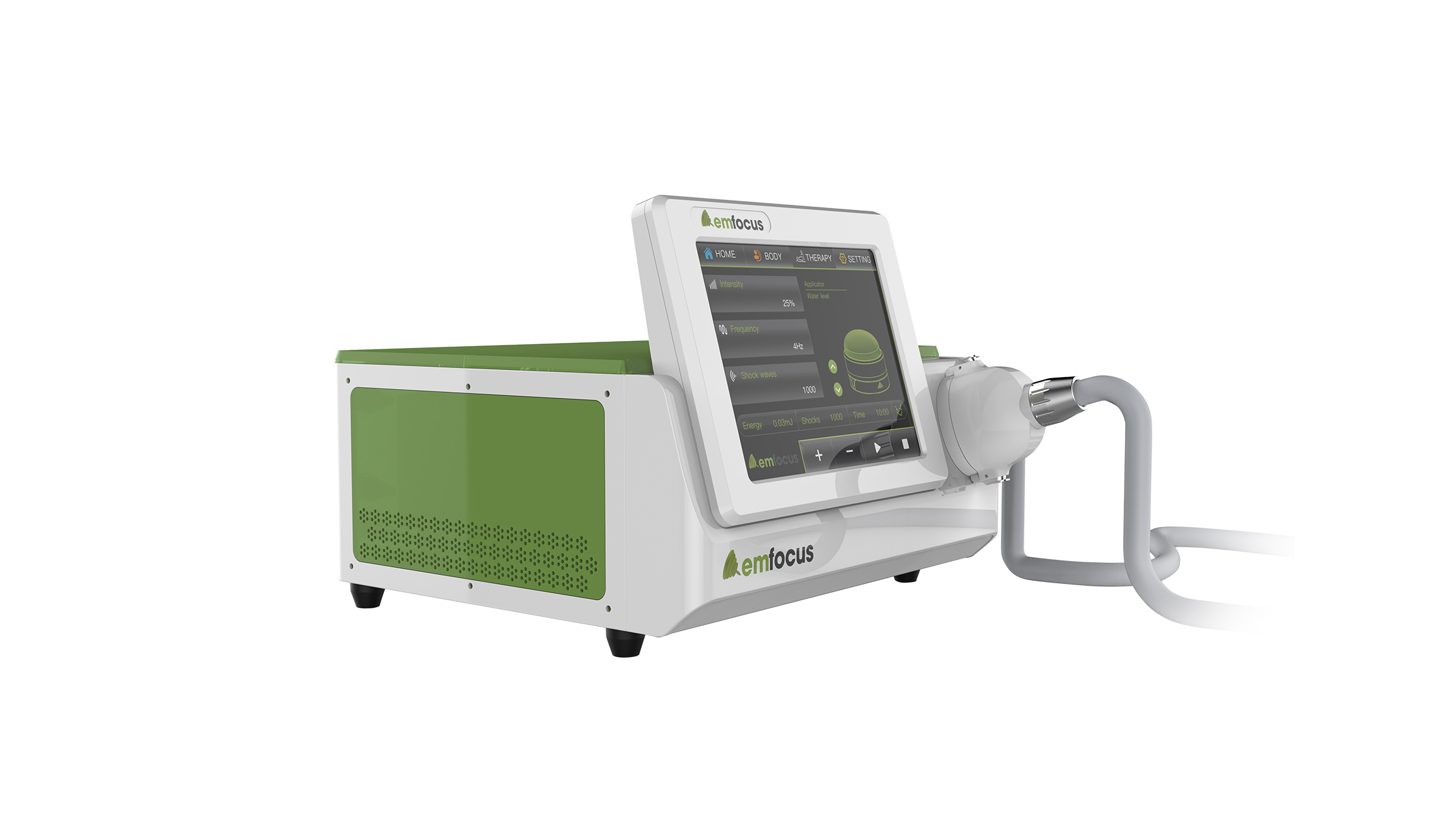

EMFOCUS
Machine Highlights
1、Focal Zone: Adjustable from 0–65 mm for targeted treatment depth.
Contact us
2、Therapeutic Effectiveness: Reaches up to 125 mm for deep-tissue stimulation.

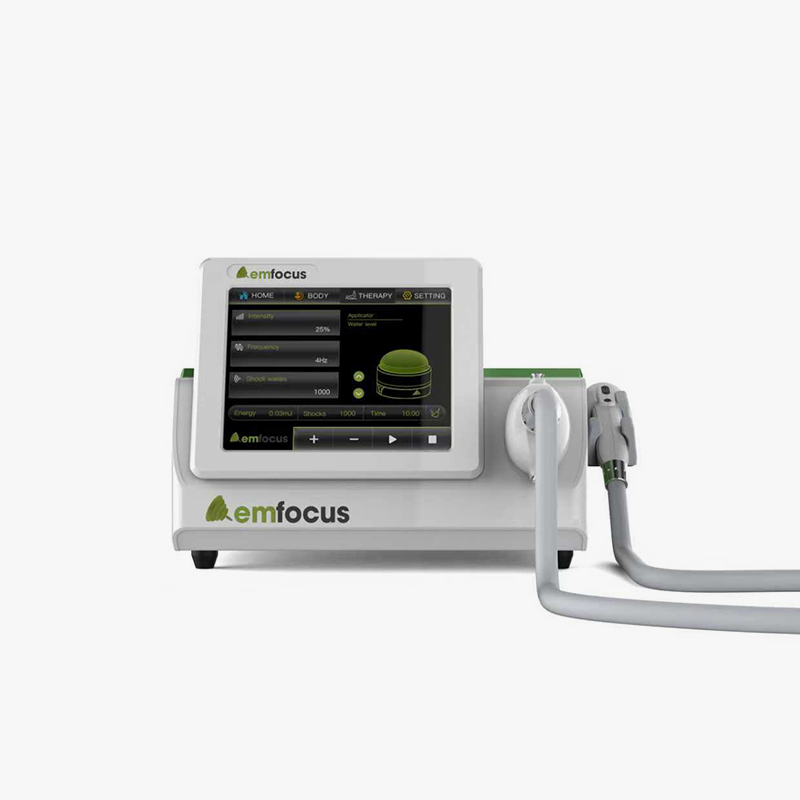

3、12.1-Inch HD Touchscreen: Large, intuitive display with responsive control.
4、Adjustable Energy Range: Pulse frequency up to 4 Hz, easily tailored for each patient.
5、No Gel Pad Required — Water-level adjustment for precise, convenient operation with zero consumables.
6、Ergonomic Handpiece: Lightweight handle with on-hand intensity control for seamless operation.Operation Video
1、Wider Clinical Applications — Designed for pain management, rehabilitation, orthopedics, and sports medicine.
Contact us
2、Precise Focus Point — Well-defined and accurate focal zone ensures both diagnostic and therapeutic precision.
3、User-Friendly Software — Includes preset treatment protocols and parameter memory for faster workflow.

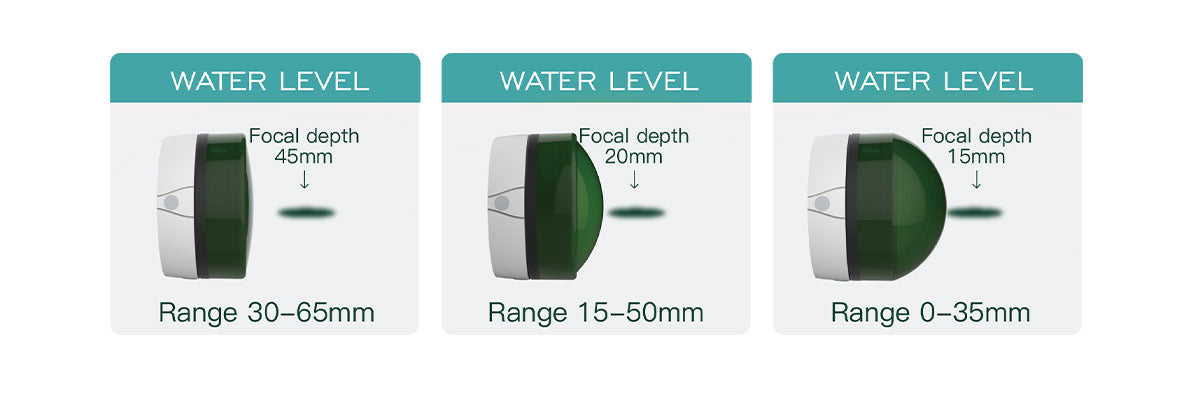

Emfocus Penetration Depth
Dynamic penetration depth control. Adjust shock wave penetration depth by touch screenand energy levels by button on applicator. No need gel pads.
EMFOCUS
Electromagnetic focus shockwave technology is a newer generation technology. It discharges high-voltage electricity to the electric coil and to form a powerful pulse electromagnetic field energy. The electromagnetic wave generates a deep shock wave in the water. Its advantage is that the output energy is extremely stable, the focal length is long, and the lifespan of the electromagnetic generator is also long-lasting and stable.

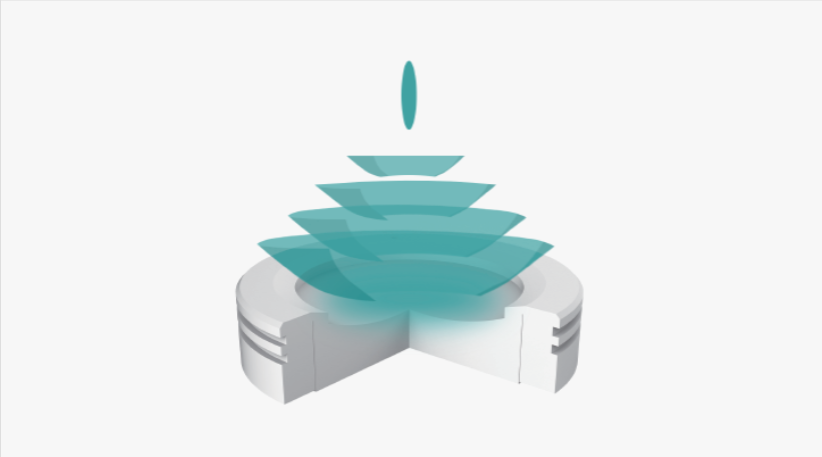

EMFOCUS MECHANISM
The electromagnetic shockwaveis based on the physical principle of electromagnetic induction. It enables very precise and highly sensitive dosing of the applied shock wave energy. The shock wave source uses a spe-cial coil to focus the shock waves. Shock waves are generated in water outside the body and then transmitted to the biological tissue.
EMFOCUS FOCAL ZONE
The focal zone is the area of maximum energy intensity. lts size is basically independent of the selected energy level. By contrast, the size of the treat-ment zone depends on the selected energy level and is generally larger than the focal zone.
Complete EMFOCUS Ⅱ Shockwave Therapy Device Operation Guide!
FAQ
What is EMFOCUS used for?
EMFOCUS is an electromagnetic focused shockwave therapy device designed for pain management, rehabilitation, and sports medicine. It delivers precisely focused energy to deep tissues, promoting blood circulation, accelerating healing, and relieving chronic or acute pain.
What conditions can EMFOCUS treat?
• Tendinopathies (e.g., Achilles tendinitis, tennis elbow, rotator cuff inflammation)
• Plantar fasciitis and calcific tendinitis
• Chronic back and neck pain
• Delayed or nonunion fractures
• Joint dysfunction and soft tissue injuries
Does the treatment hurt?
No. Focused shockwave therapy bypasses the skin’s sensory nerves, making the treatment more comfortable than radial shockwave. Most patients feel only mild tapping or warmth during the session.
What are the main advantages of EMFOCUS?
• Stable electromagnetic energy output
• Adjustable treatment depth (0–65 mm) via water-level control
• No gel pad required — lower cost and easy maintenance
• Preset clinical protocols and intuitive touchscreen interface
• 12.1-inch HD display for clear, responsive operation
Who should avoid using EMFOCUS?
People with the following conditions should not undergo shockwave therapy:
• Pregnancy
• Active infection or malignant tumor in the treatment area
• Severe cardiovascular diseases or pacemakers
• Blood clotting disorders
• Open wounds or metal implants near the treated site
How often should treatments be performed?
Typically 1–2 sessions per week, each lasting 10–20 minutes. Most patients experience noticeable improvement after 3–6 sessions.
Does the machine require maintenance?
Yes. The device uses a water-circulation cooling system that must be filled with distilled or purified water. Replace the water every two weeks to maintain performance. Avoid tap water to prevent scale buildup.
How long does the handpiece last?
Each handpiece is rated for approximately 500,000 shocks. After this point, the energy output gradually decreases, so it’s recommended to replace the handpiece after 500,000 uses to maintain optimal performance.
